Product Description

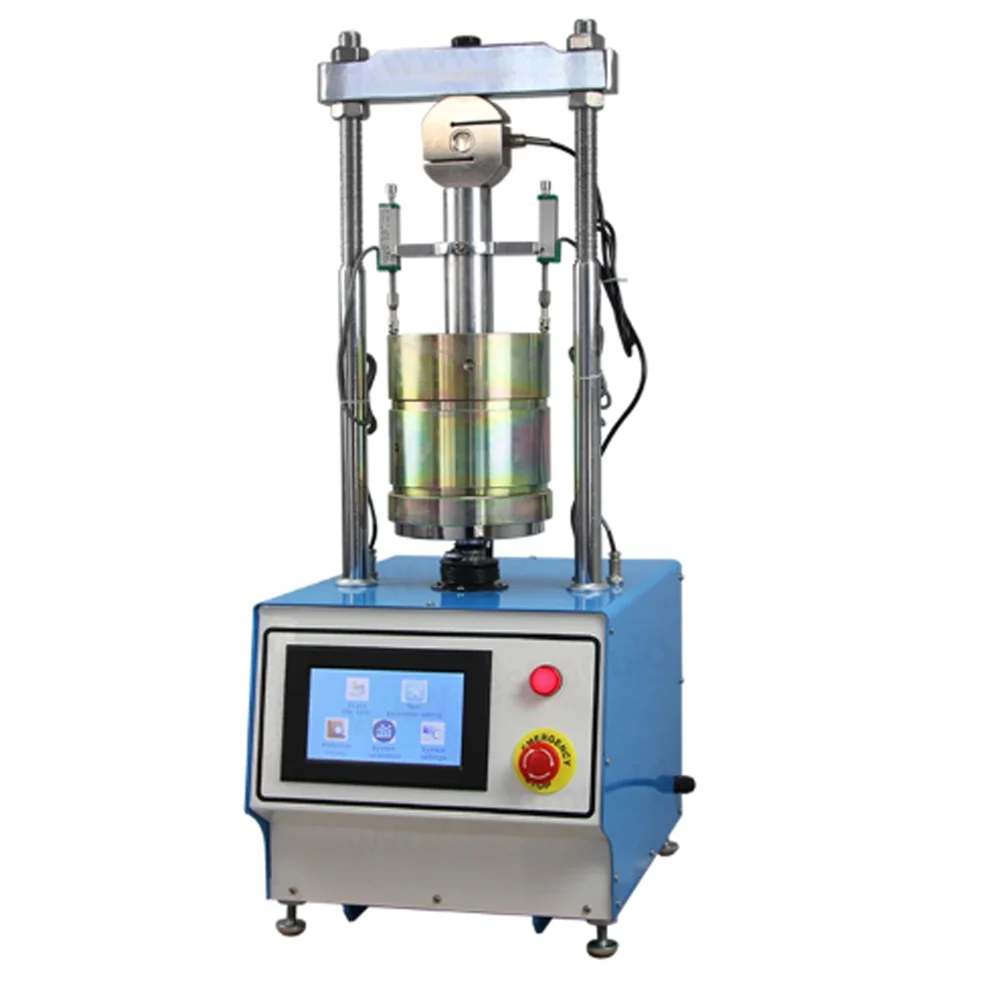

The digital CBR test machine is Applicable to all kinds of soil and mixture (soil with particle size less than 40mm) after carrying out compaction test in the specified test tube mold to determine the bearing capacity of the designed pavement, pavement base layer, subbase layer and subgrade material layer. It’s one of the necessary instruments for geotechnical testing.
Main Technial Parameters
| Max. Load | 30KN |
| Load Speed | 1.0mm/min |
| Penetration Rod | Phi 50mm * 100mm |
| Platen Travel | 50mm |
| Test Mode | Phi 152mm * 170mm |
| Load Plate | 4 blocks (outside diameter 150mm, diameter Phi 52mm, each 1.25Kg) |
| Size | 310 * 310 * 930mm |
| Weight | 100kg |
