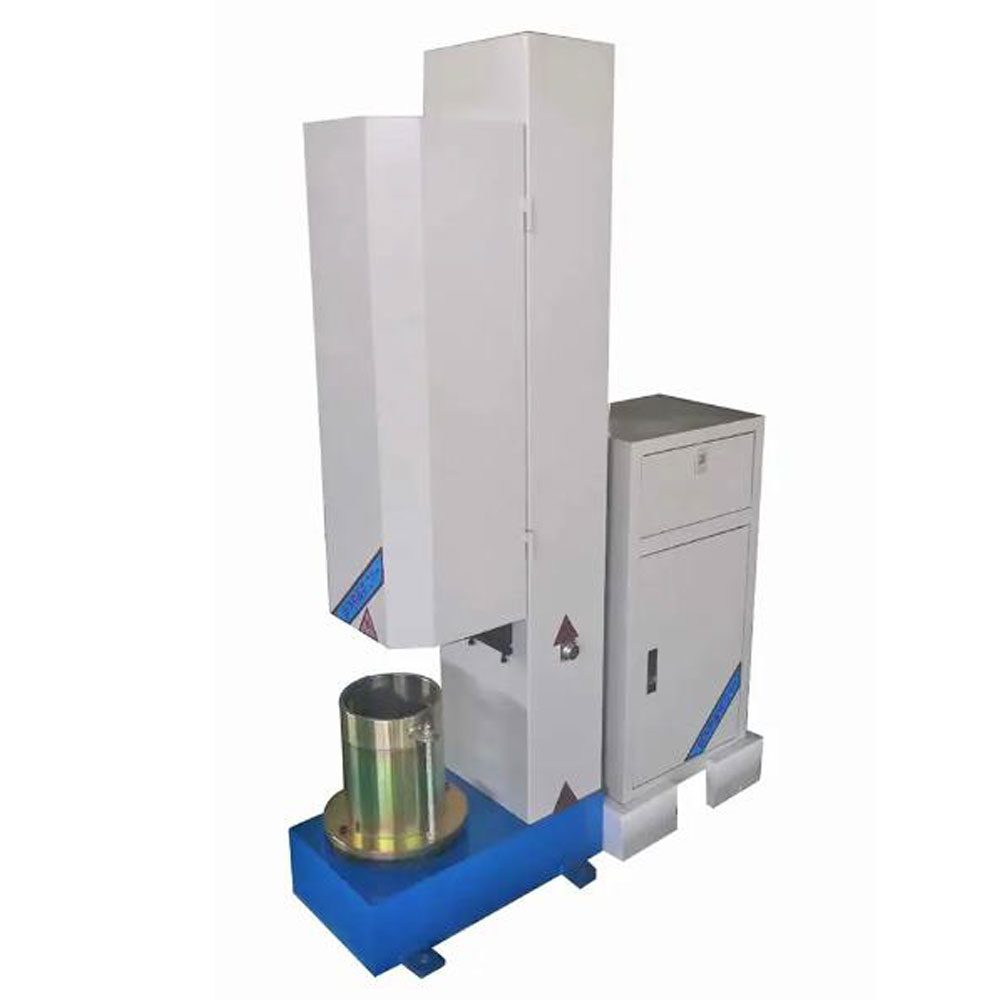

Automatic Proctor CBR Soil Compactor, Manual for SC-A100-152 Automatic Soil Compactor

Description

Application: It is designed according to railway project and civil test standard. It is used to determine the relations between the water content and dry density by standard compaction, to find best water content and max. dry density of soil. It adopts intelligent controller, can both do heavy compaction and light compaction, it is easy operation, skillful structure, stable working. It is suitable for the field geotechnical test in the laboratory.

• II. Technical parameter:
• Heavy compaction: Weight of the hammer: 4.5KGS, Fall height: 457mm.
• Light compaction: Weight of the hammer: 2.5KGS, Fall height: 305mm.
• Diameter of the cylinder Mould: ￠100mm and ￠152mm
• Diameter of the hammer head: ￠51mm
• Compaction frequency: 30 times/minute
• Motor speed: 1440RPM
• Setting time： 0-99times
•  Power: 500W
