Sale!

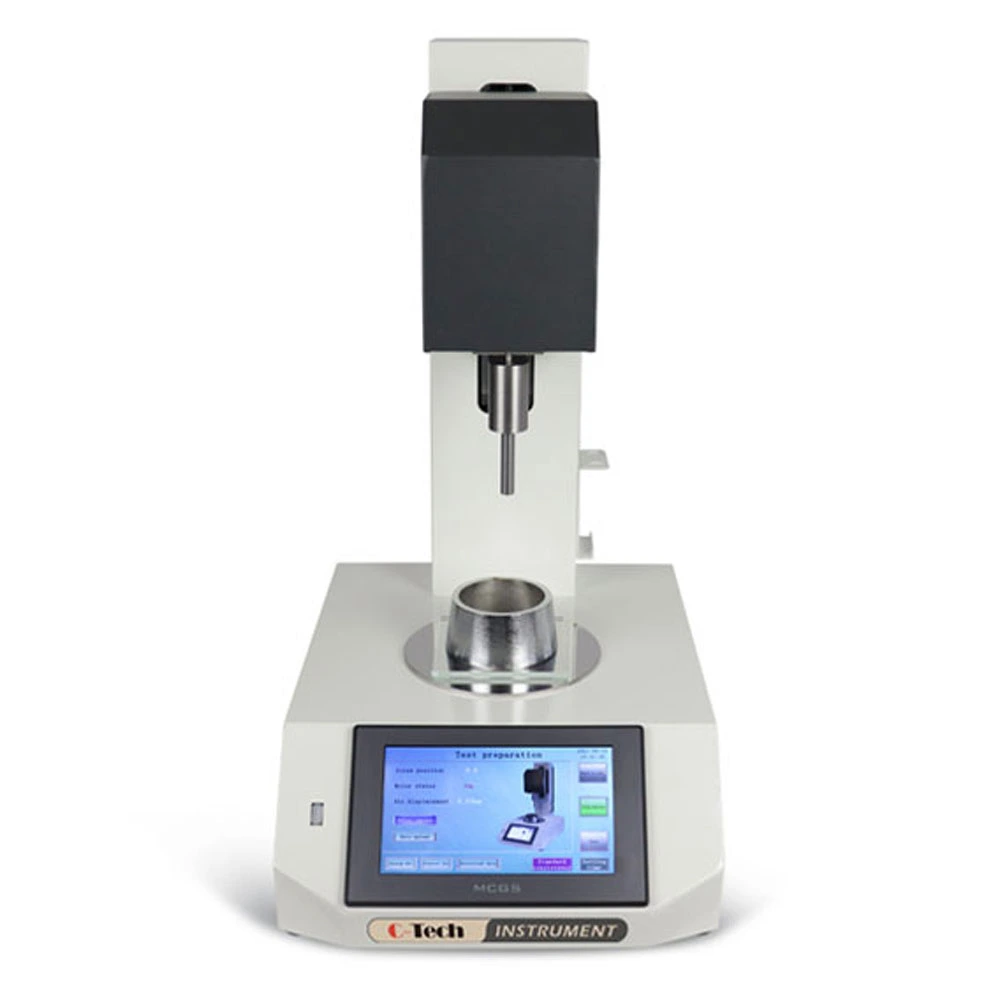

Automatic Vicat Apparatus

Original price was: 580.00৳ .Current price is: 575.00৳ .

  • Automatic Vicat apparatus
  • STANDARD :: AASHTO T131, EN 196/3, ASTM C191, ASTM C187
  • Brand :: SF
  • Manufacturer country :: China
  • Country of origin :: China
Category:

Description

  • Cement Setting Time Test Instrument Vicat Apparatus
  • Cement Vicat Needle Apparatus Tester Supplier
  • Vicat Apparatus – Precision for Cement Consistency Testing
  • Application and scope of application

Vicat apparatus, also called cement consistency setting time tester. It is a testing instrument for cement and concrete industries. It is mainly used to test the standard consistency water requirement and setting time of cement paste.
This instrument is mainly suitable for Portland cement, ordinary Portland cement, slag Portland cement, fly ash Portland cement, pozzolanic Portland cement, composite Portland cement and other varieties designated cement.
The cement standard consistency net slurry has a certain resistance to the sinking of the standard test rod. By testing the penetration of cement paste with different water content, the amount of water needed to be added to the cement standard consistency paste is determined.

Main structure and characteristics

Number Parameters Technical indicators
1 Time control Display resolution: 0.1s
control precision: ≤±0.1s
2 Displacement Adapt high precision LVDT displacement sensor, split structure,
without friction when needle dropping
range 0~50mm, display precision: 0.01s
Relative displacement accuracy: ≤±0.1mm
3 Storage data 200 groups
4 Sliding component 300g±1g(include needle and rod)
5 Data interface RS485
6 Dimension 390x310x575mm
7 Voltage 220±10%VAC/50HZ
8 Power 40w
9 Net weight 12kg
Packing list and materials for test

(1)Packing list

NO Name Unit Quantity Remark
1 Vicat host set 1
2 Slit component pcs 1 Sensor rod, cylinder
3 Mould Pcs 1 Height 40mm
4 Rod Pcs 1 Effective length 50mm
Diameter: 10mm
5 Needle pcs 2 Effective length 50mm
Diameter: 1.13mm
6 Glass pcs 2 100mmx100mm
Thick: 4~5mm
7 scraper pcs 1
8 Power cable pcs 1
9 485 Communication data line pcs 1

The Automatic Vicat Apparatus 63-L3000 provides a completely automatic method for determining the initial and final setting time of cements or mortar pastes. Advanced electronics technologies provide superior performances and total flexibility. The Automatic Vicat Apparatus 63-L3000 is easy to operate and accurate in test results, can be an ideal helper in your experiments.

STANDARD

  • AASHTO T131
  • EN 196/3
  • ASTM C191
  • ASTM C187
