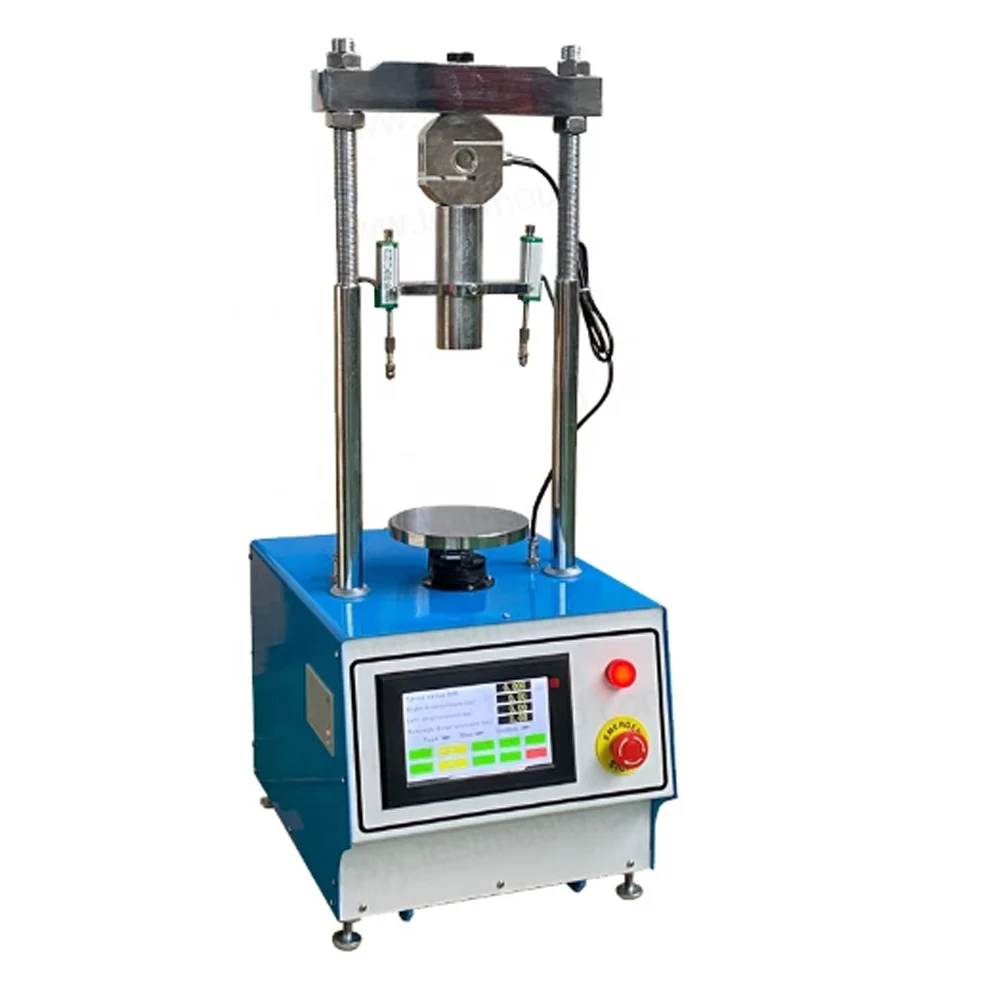

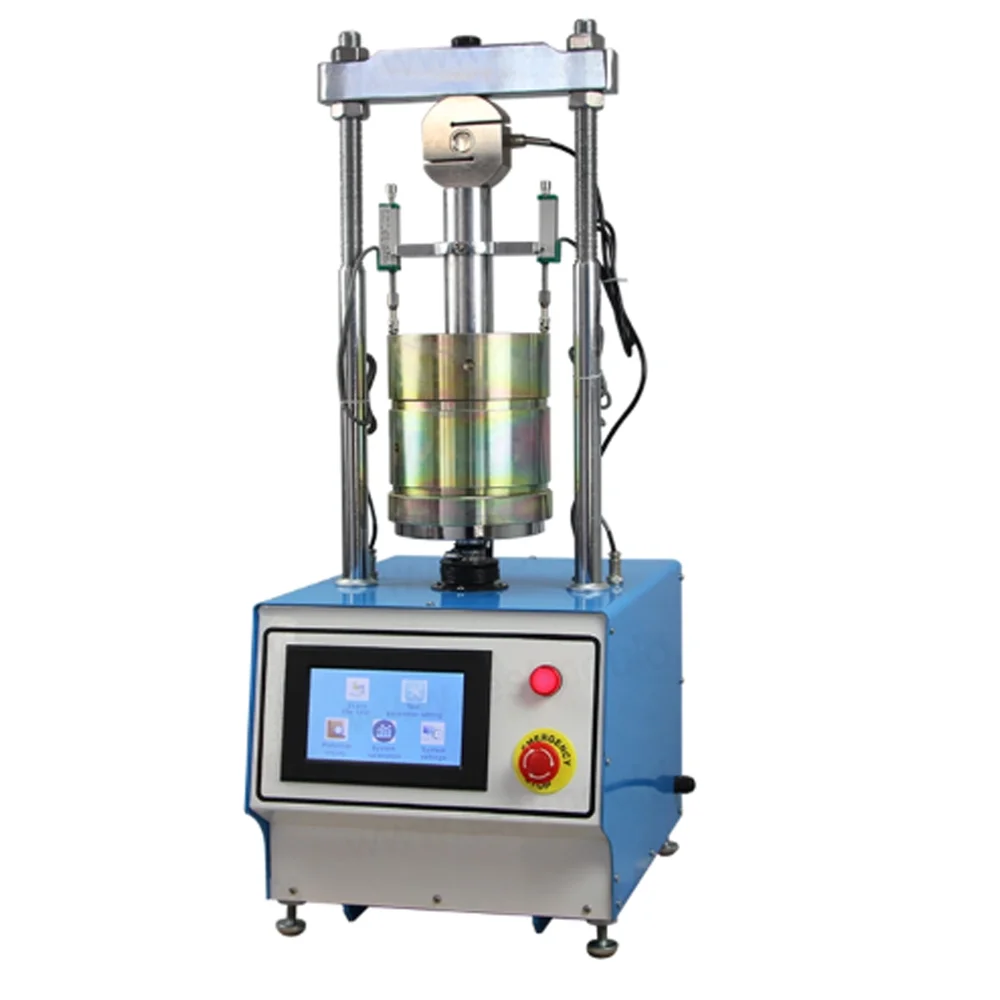

The digital CBR test machine is Applicable to all kinds of soil and mixture (soil with particle size less than 40mm) after carrying out compaction test in the specified test tube mold to determine the bearing capacity of the designed pavement, pavement base layer, subbase layer and subgrade material layer. It’s one of the necessary instruments for geotechnical testing.
Main Technial Parameters
Max. Load
30KN
Load Speed
1.0mm/min
Penetration Rod
Phi 50mm * 100mm
Platen Travel
50mm
Test Mode
Phi 152mm * 170mm
Load Plate
4 blocks (outside diameter 150mm, diameter Phi 52mm, each 1.25Kg)
