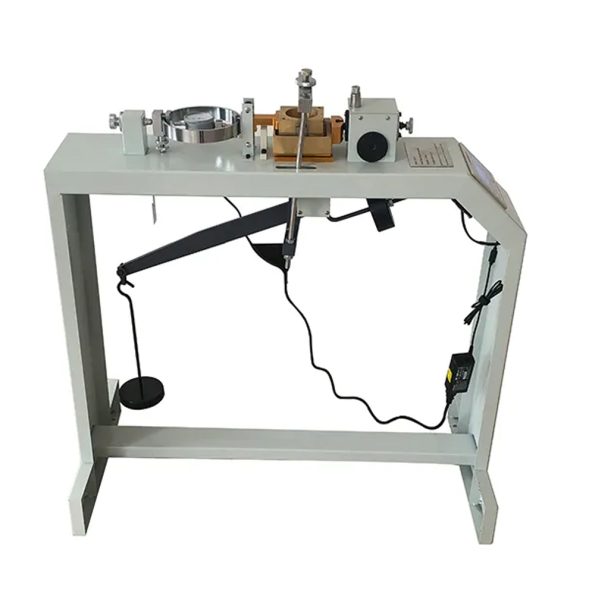

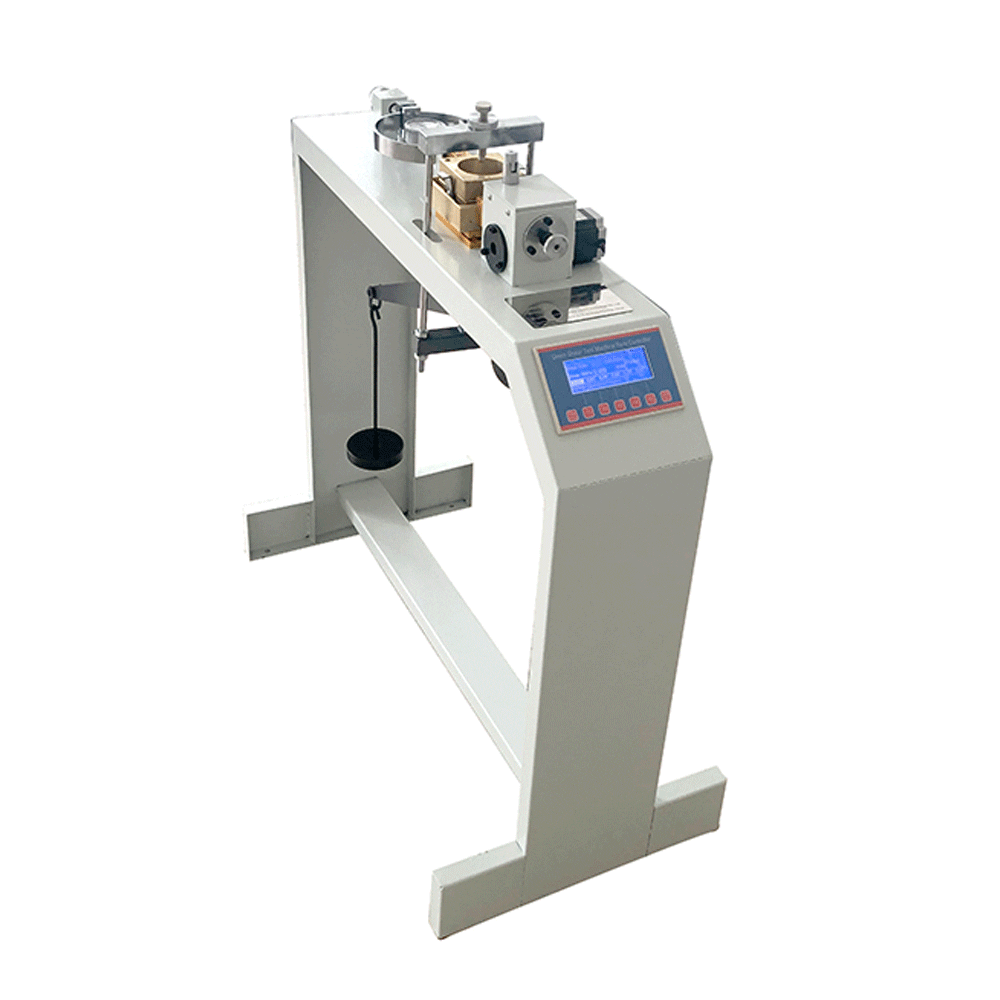

Digital Soil Direct Shear Apparatus

Original price was: 850,000.00৳ .Current price is: 800,000.00৳ .

Digital Soil Direct Shear Apparatus

  • Model:: ASTM D3080
  • Designs : Popular design
  • Manufacturing Country :: China
  • Importer :: Rahim Trading Corporation
Category:

Description

Key Feature.

♦ Applicable standards: BS 1377; EN 1997-2; ASTM D3080
♦ Microprocessor control
♦ Rapid approach and return to start datum
♦ Fully variable speed, up to 9.99mm/min
♦ Reduced operator involvement
♦ Direct entry through keyboard
♦ Direct reading in engineering units
♦ Modular transducer system

♦ Compatible with shear boxes up to 100 mm diameter or square
♦ USB pen drive for unlimited storage capacity and TXT format data output
♦ Optional PC control via LAN port and dedicated software
♦ Sturdy shear box techno-polymeric carriage untouchable by corrosion
♦Adjustable speed and travel (forward and reverse) for residual shear test
♦ Number of cycles adjustable from 1 to 99
♦ Specific and independent data recording for consolidation and failure stages
Technical Parameters
Maximum vertical load (KPa)
400
Pressure level (KPa)
50,100,200,300,400
Corresponding weight weight (KPa)
1.275,2.55,5.1,7.65,10.2
Lever radio
1:12
Soil sample
30cm2 x 2cm(H)
Maximum horizontal shear force (KN)
1.2
Power type
electric
Variable speed
0.02,0.8,2.4mm/minute
The displacement of the motor
0.2mm/r
Motor speed
0.1,0.8.2.4r/min
Voltage
AC220V 50HZ
