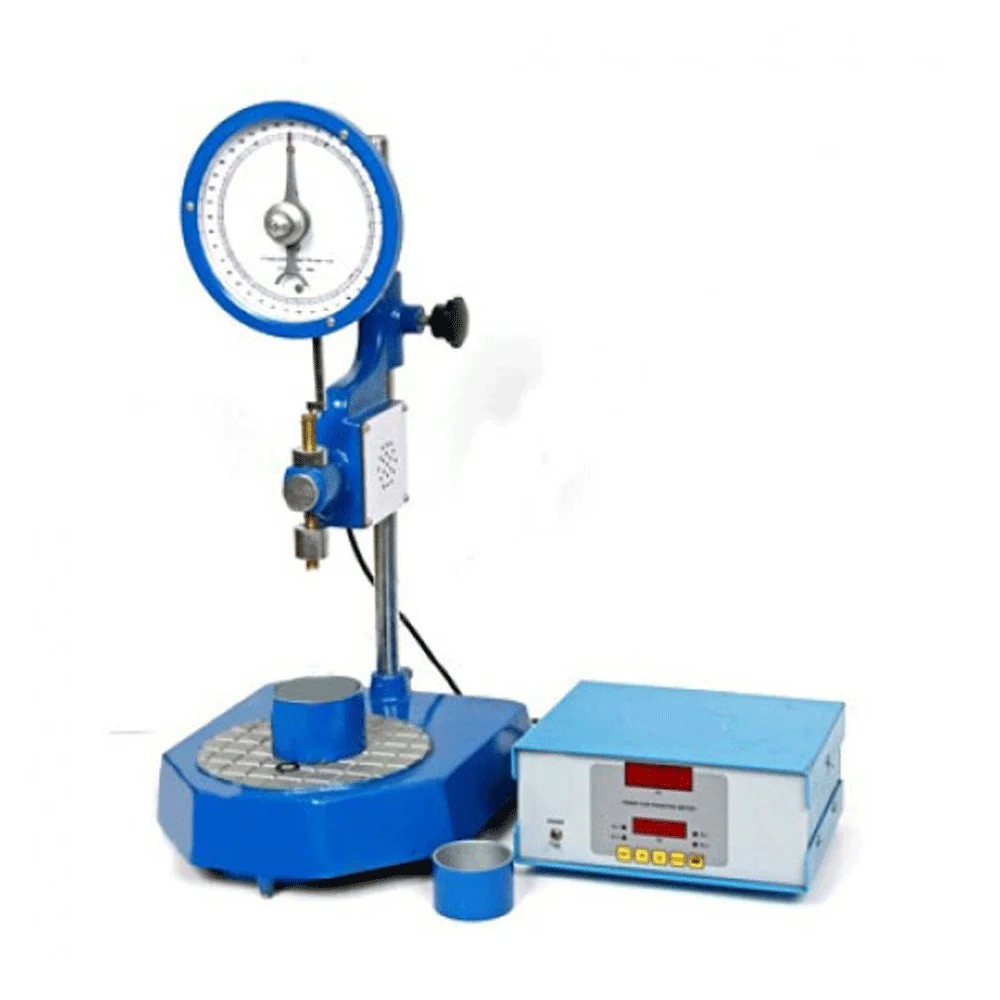

Digital Standard Penetrometer, For soil testing Penetrometer

It consists of a vertical pillar mounted on a base provided with levelling screws. The head together with dial plunger rod a cone (or needle) slides on a pillar and can be clamped at any desired height. A rack and pinion and pointer assemble provides fine adjustment of needle or cone tip to sample. It incorporates a clutch mechanism. Which makes reading of penetration and subsequent resetting a simple and accurate operation. The dial graduated in 400 1/10 and the millimeter subdivisions and the needle pointer against figuers makes easy reading. Supplied with a bitumen penetration needle, ring weight one each 50gms. and 100gms. two sample containers.Accessories:
Penetration cone for empirical estimation of penetration of lubricating grease, petroleum jelly etc.Balance fitted with an under bench weighing facility can be fitted. The balance supplied can also be used as a standard weighing device, thus providing a versatile and comprehensive weighing systemin the laboratory.
(i) Cap. 5 Kg (5000gm) Accuracy 0.5 gm (500mg)
(ii) Cap.15kg (15000gms) Accuracy 1 gm (1000 mg)
