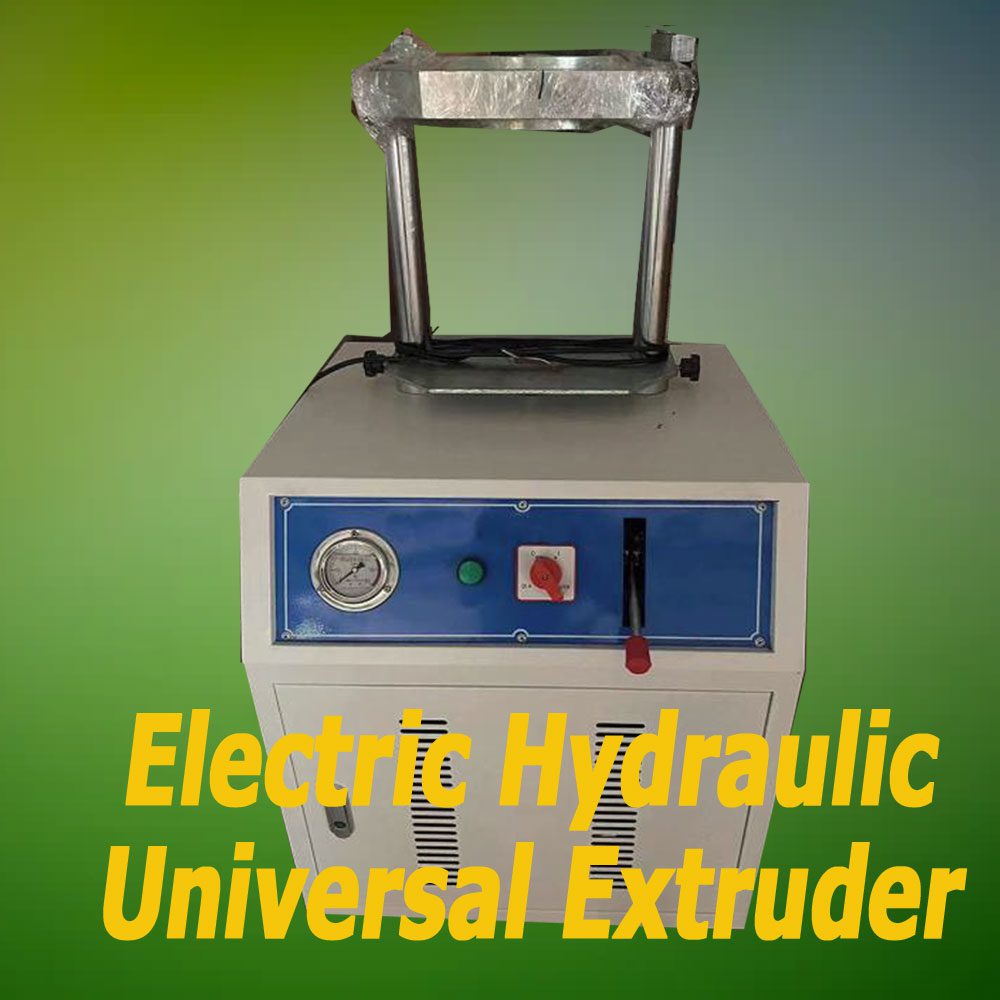

Electric Hydraulic Universal Extruder –  UE-E150B,  (Stripping Test Machine Electric and Hydraulic)

I. Use range This series of multi-functional hydraulic extruder is suitable for the removal of soil compact, specimens, Marshall compact specimens and unconfined compression specimens. It
adopts AC hydraulic power unit and international popular G gear pump. It has the characteristics of compact structure, large force, low noise, simple operation, stable and reliable, beautiful appearance, etc. It is the most advanced model in China.
II. Specifications

 measuring range: 0-60Mpa

• Capacity: 150KN
• Rising speed: 70 mm/min
• Oil pump maximum working pressure: 30Mpa
• Piston diameter: Ø 100 mm
•  Maximum piston stroke: 240mm
•  Motor specification: 1500W 380V 1400 rpm
