Sale!

LEICA TOTAL STATION TS 07 Best Price in BD

Original price was: 1,450,000.00৳ .Current price is: 1,400,000.00৳ .

Category:

Description

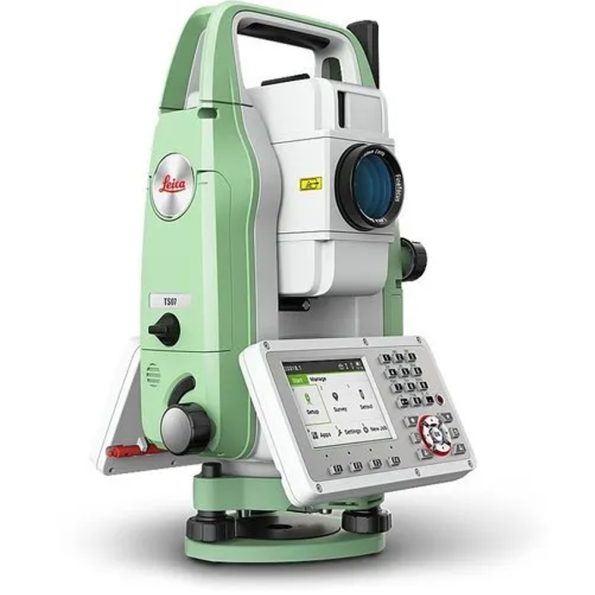

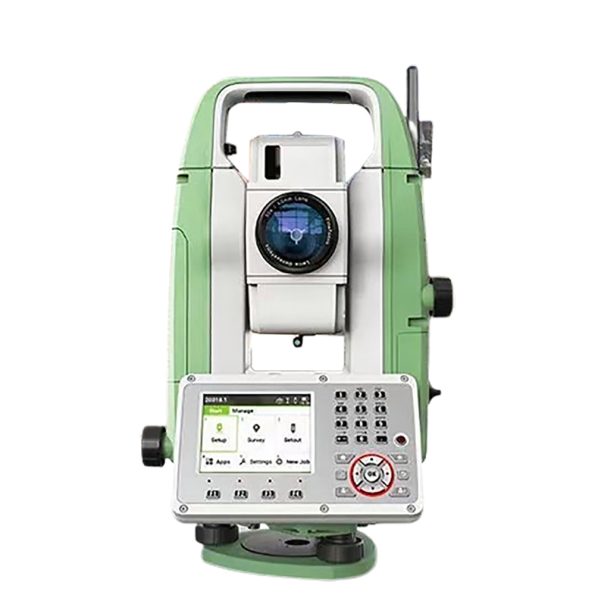

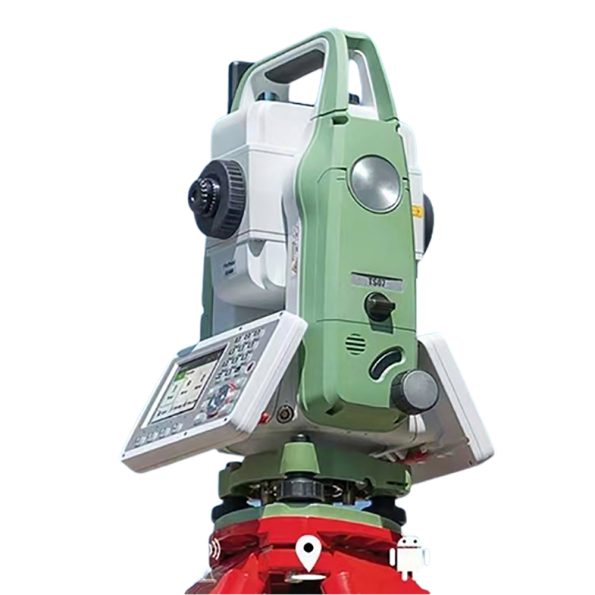

Viva TS07 Total Station
ANGULAR MEASUREMENT
Accuracy 1  Hz and V Absolute, continuous, diametrical 1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon),
5’’ (1.5 mgon)
DISTANCE MEASUREMENT
Range 2 Prism (GPR1, GPH1P) 3
Non-Prism / Any surface 4		 1.5m to 3500m
R500: 1.5m to >500m, R1000: 1.5m to >1000m
Accuracy / Measurement time Single (prism) 2,5
Single (any surface) 2,4,5,6		 1mm + 1.5ppm / typically 2.4s 2mm + 2ppm / typically 3s
Laser dot size At 50m 8mm x 20mm
Measurement technology System analyser Coaxial, visible red laser
IMAGING
Overview camera Sensor
Field of view Frame rate		 5 megapixel CMOS sensor 19.4°
Up to 20 frames per second
AUTOMATIC AIMING – ATRplus
Target aiming range2  / Target locking range2 Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122) 1500m / 1000m
1000m / 1000m
Accuracy 1,2  / Measurement time ATRplus angle accuracy Hz, V 1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon),
5’’ (1.5 mgon) / typically 3-4s
POWERSEARCH
Range / Search time 360° prism (GRZ4, GRZ122) 300m / typically 5s
GUIDE LIGHT (EGL)
Working range / Accuracy 5–150m / typically 5cm @ 100m
GENERAL
Field software Leica Captivate with apps
Display and keyboard 5″ (inch), WVGA, colour, touch, face I standard / face II optional 37 keys, illumination
Processor TI OMAP4430 1GHz Dual-core ARM®  Cortex™ A9 MPCore™ Operating system – Windows EC7
Power management Exchangeable Lithium-Ion battery Operating time 5–8 h
Data storage Internal memory Memory card 2 GB
SD card 1 GB or 8 GB
Interfaces RS232, USB, Blue tooth®, WLAN
Weight Total station including battery 5.3 – 6kg
Environmental specifications Working temperature range
Dust / Water (IEC 60529) / Humidity		 –20°C to +50°C
IP55 / 95%, non-condensing
