Sand Density Cone Apparatus – Ultimate Reliable Field Kit in Bangladesh

Description

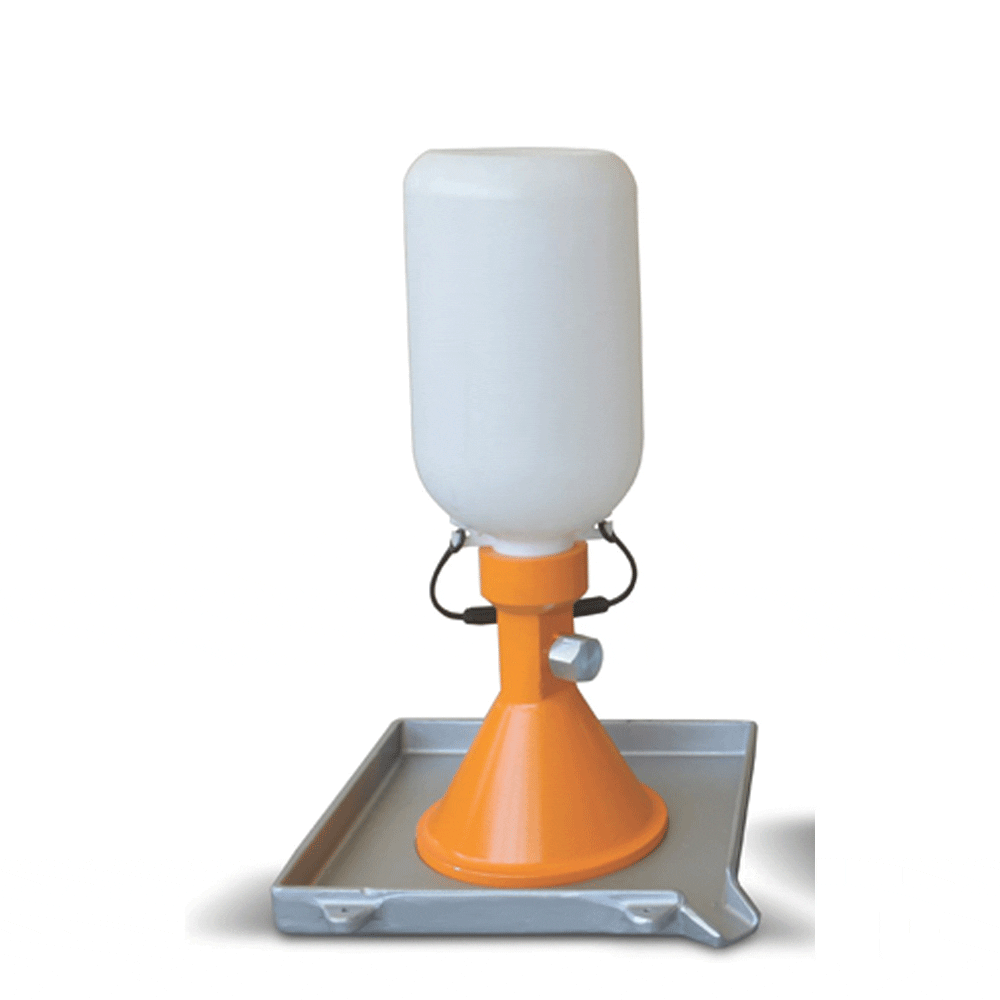

Sand Density Cone Apparatus helps measure soil density accurately in the field

Explore more soil testing equipment here.



Sand Density Cone Apparatus Applications

Specifications Sand Cone Test Apparatus,

Test Standard	ASTM D1556, AASHTO T191, BS 1377
Test Method	Sand Replacement / Sand Cone Method
Jar Capacity	1 Gallon (approx. 4 Liter), also available in 1/2 Gallon
Cone Assembly	Precision brass or aluminum cone with quick-shutoff valve
Base Plate	Aluminum square base plate, approx. 12 in x 12 in with center hole
Calibrated Sand	Clean, dry, uniformly graded Ottawa sand (20-30 mesh), sold separately
Jar Material	Heavy-duty polyethylene or glass, threaded neck
Valve Type	Manual turn-valve with positive shutoff
Applicable Materials	Soil, sand, aggregate base, and subgrade layers
Set Includes	Sand cone with valve, base plate, and calibrated sand jar
Country of Origin	Imported, quality-checked before dispatch
Delivery Coverage	Dhaka, Chattogram, Sylhet, and nationwide across Bangladesh



Key Features Sand Cone Test Apparatus,

1. The apparatus uses a corrosion-resistant metal cone with a calibrated valve for consistent sand flow.
2. A rugged base plate anchors the cone firmly over the test hole during every trial.
3. Moreover, the wide-mouth jar accepts standard calibrated sand without spillage.
4. The valve mechanism shuts off sand flow instantly, so technicians record accurate volume readings.
5. Additionally, the lightweight design allows one technician to carry the full set to remote job sites.
6. The apparatus withstands repeated field use because manufacturers build it from durable, weather-resistant materials.
7. Furthermore, clear calibration markings on the jar simplify volume readings under direct sunlight.



Applications Soil Density Cone Test Kit,

1. Highway and road construction teams use this apparatus to confirm subgrade and base course compaction.
2. Dam and embankment projects rely on the device to check fill density at multiple lift heights.
3. Furthermore, airport runway contractors verify subgrade strength before they place pavement layers.
4. Similarly, building foundation crews test backfill density around footings and utility trenches.
5. Railway track-bed engineers apply the method to confirm ballast and sub-ballast compaction.
6. In addition, quality control laboratories run routine density checks on borrow-pit and quarry materials.

Sand Density Cone Apparatus – Reliable Soil Density Testing Equipment in Bangladesh
The Sand Density Cone Apparatus is a field testing instrument used to determine the in-place dry density of compacted soil. It is widely used in road construction, highway projects, earthwork, foundation preparation, and geotechnical engineering.
SRM Trading Corporation offers soil testing equipment for construction and laboratory applications in Bangladesh.

Sand Density Cone Apparatus Applications
The Sand Density Cone Apparatus is commonly used for:
Field density testing of compacted soil.
Road and highway construction projects.
Earthwork compaction quality control.
Embankment and foundation preparation.
Civil engineering and geotechnical investigations.
Construction material testing laboratories.

How Does the Sand Density Cone Apparatus Work?
The sand cone method determines the volume of a small hole excavated in compacted soil using calibrated sand.
The excavated soil is collected and weighed. Its moisture content is determined separately. The volume of the hole is calculated from the mass of calibrated sand required to fill it.

Using these measurements, engineers calculate the wet density and dry density of the soil.
The results help evaluate whether the required level of soil compaction has been achieved.
Benefits of Using a Sand Density Cone Apparatus

Reliable Field Testing: Provides a practical method for determining in-place soil density when the equipment is properly calibrated and the procedure is followed.
Construction Quality Control: Helps engineers assess soil compaction during construction.
Versatile Applications: Suitable for many roadwork, earthwork, and civil engineering projects.

Established Testing Method: The sand cone method is covered by recognized testing standards, including ASTM D1556/D1556M.

Why Choose SRM Trading Corporation?
SRM Trading Corporation supplies construction material testing equipment and laboratory instruments in Bangladesh.
Customers can contact us for product specifications, availability, pricing, and equipment information.
Sand Density Cone Apparatus in Bangladesh
If you are looking for a Sand Density Cone Apparatus in Bangladesh, contact SRM Trading Corporation for product details and quotations.
Our team can assist you with information about soil testing equipment for construction and laboratory applications.
