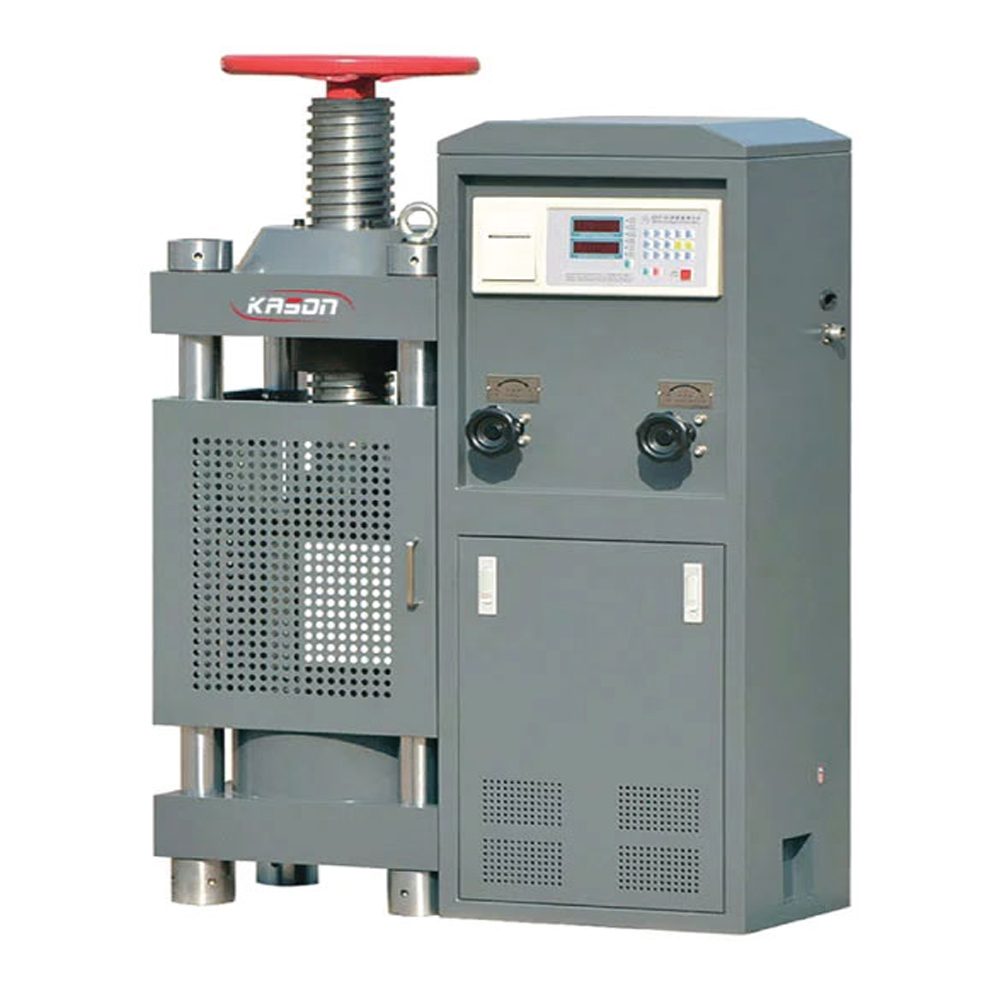

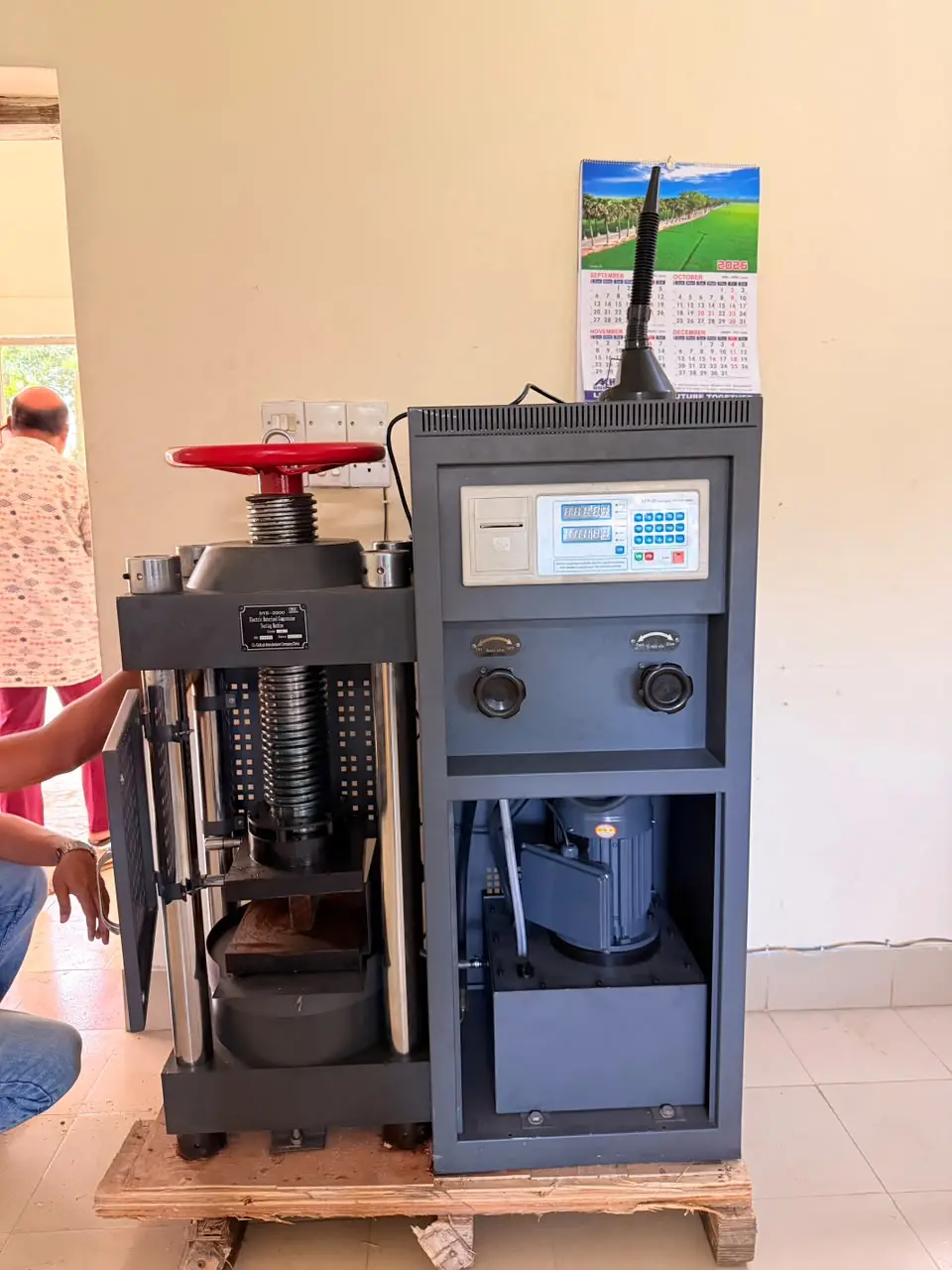

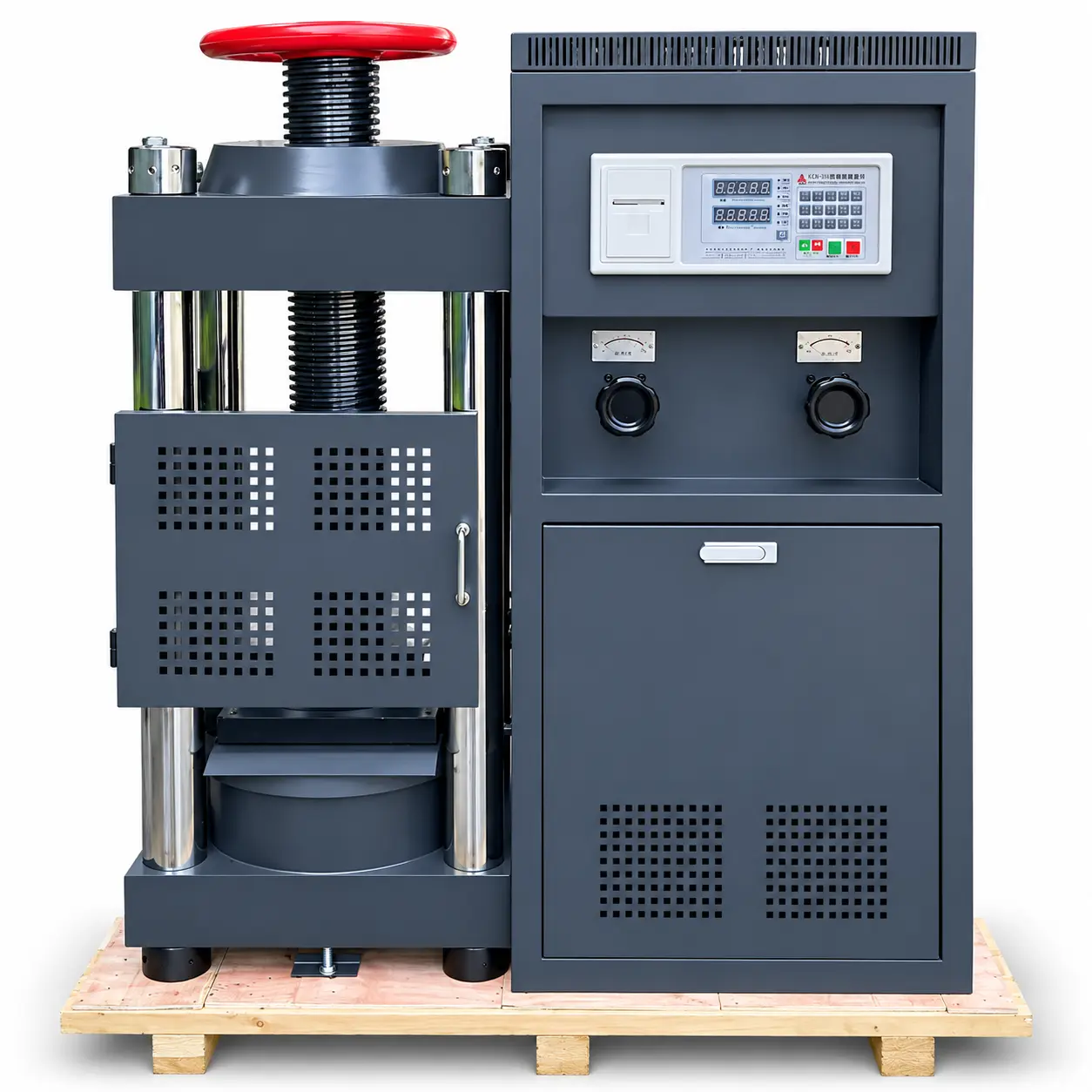

Compression Test Machine in Bangladesh
Compression Test Machine in Bangladesh is used for testing the compressive strength of concrete cubes, cylinders, and other suitable construction materials. This digital compression testing machine is designed for civil engineering laboratories, concrete testing facilities, and construction quality control applications.
Specifications Digital Compression Testing Machine 2000KN
| Parameter | Specification |
| Machine Type | Digital Compression Testing Machine |
| Load Capacity | 2000 kN (200 tons) |
| Load Accuracy | ±1% of the indicated load |
| Load Measurement | Digital load cell with LCD/LED display |
| Loading Rate | Adjustable, digitally controlled (typically 0.2–1.0 MPa/s) |
| Platen Size | 300 mm x 300 mm (standard, model-dependent) |
| Specimen Size Range | 100 mm, 150 mm, 200 mm cubes; standard cylinders |
| Frame Type | Four-column, heavy-duty steel frame |

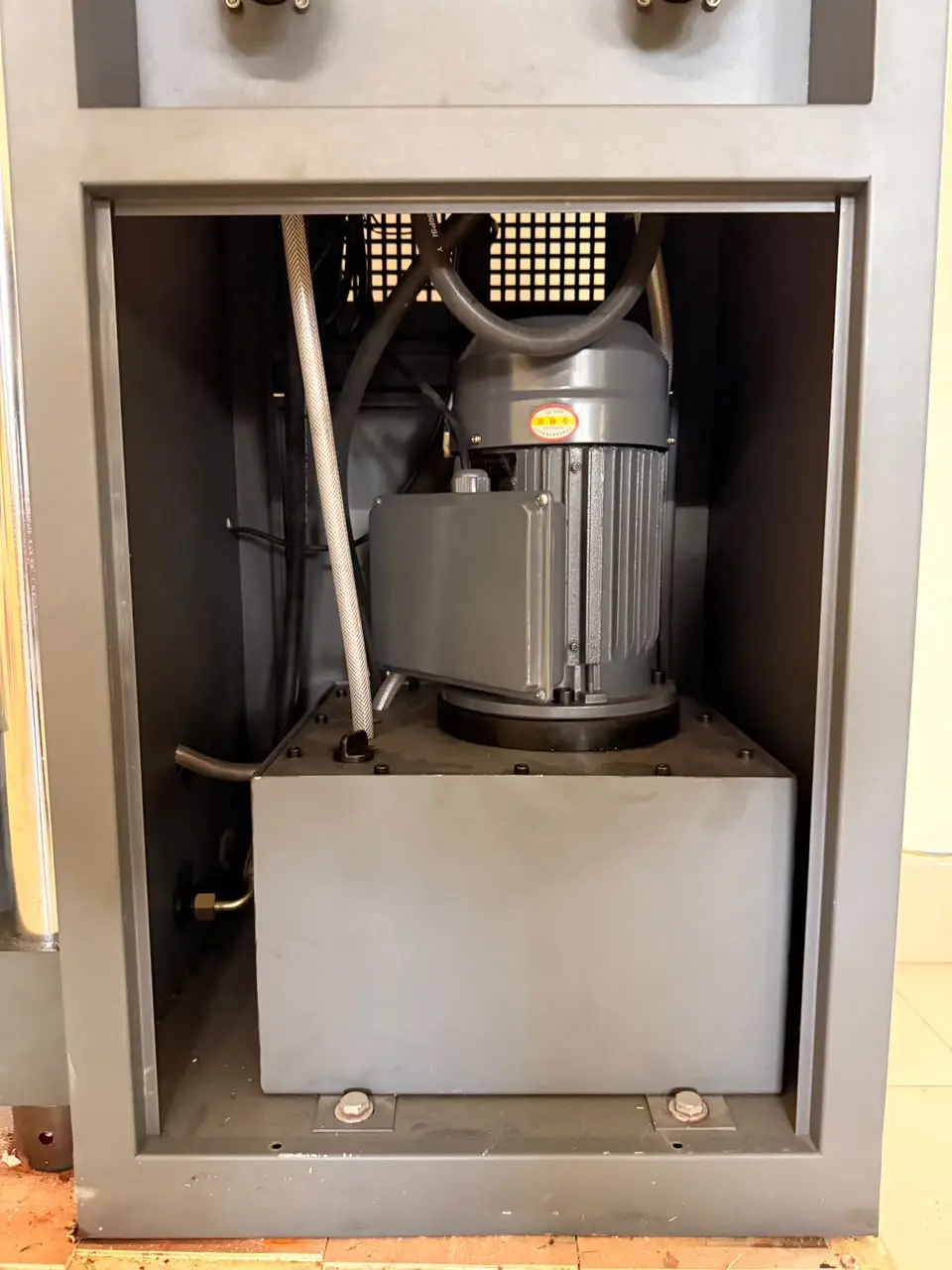

| Hydraulic System | Motorized hydraulic power pack with pressure gauge backup |
| Data Output | USB/RS232 port for data logging (model-dependent) |
| Power Supply | 415V, 50Hz, three-phase (model-dependent) |
| Dimensions (approx.) | 700 mm (W) x 650 mm (D) x 1400 mm (H) |
| Weight (approx.) | 650 kg |
| Standards Compliance | ASTM C39, BS EN 12390-4, IS 516 |
| Calibration | Factory calibrated with a calibration certificate |
| Warranty | 1 year manufacturer warranty (parts) |
Key Features of Digital Compression Testing Machine 2000kN
- High Testing Capacity: Maximum load capacity of 2000kN for compressive strength testing.
- Digital Display: Displays test readings digitally for convenient monitoring.
- Concrete Strength Testing: Suitable for testing concrete cubes and cylinders with compatible fixtures.
- Heavy-Duty Construction: Robust machine frame designed for laboratory testing applications.

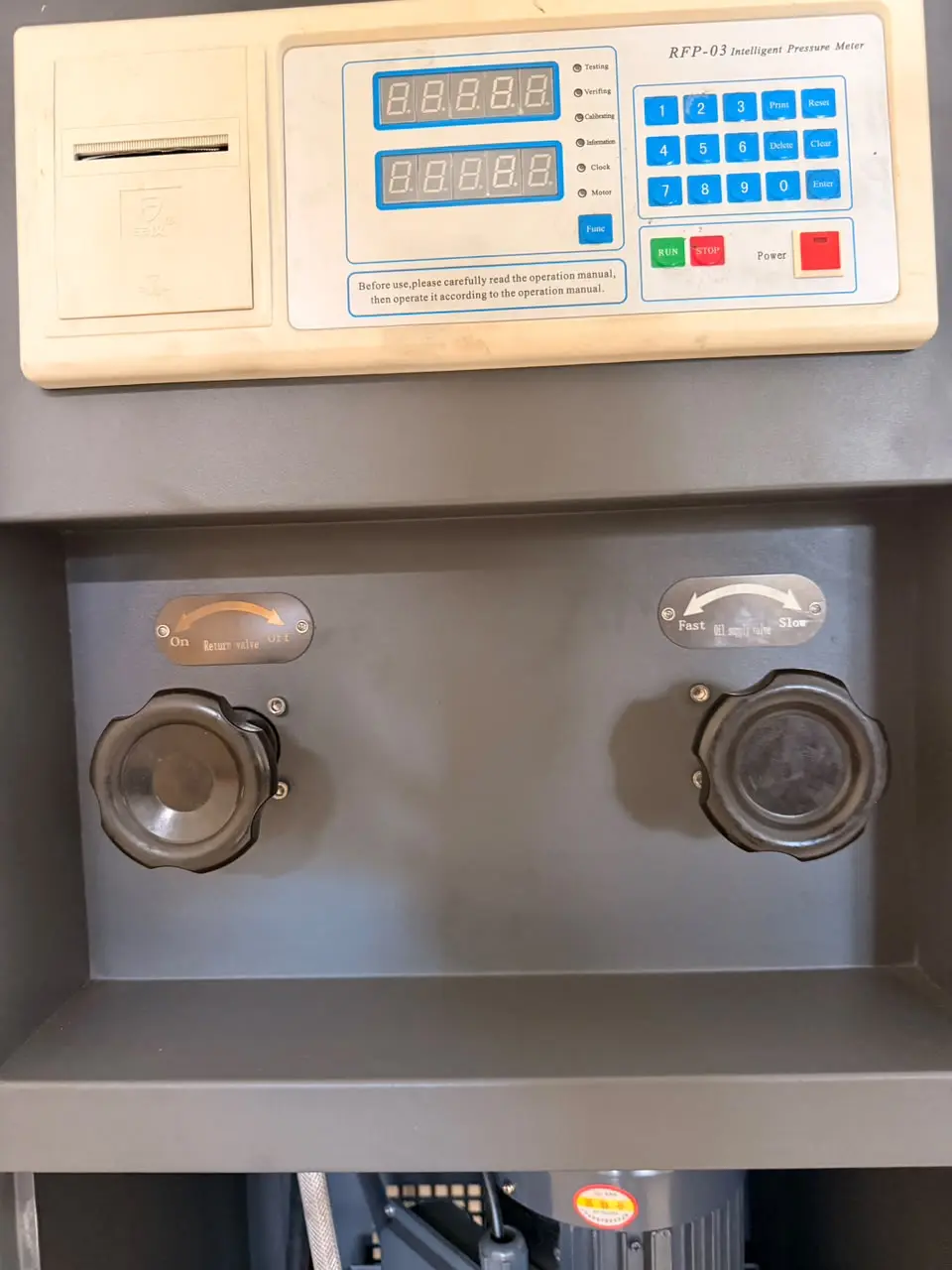

- User-Friendly Control Panel: Digital controls support convenient machine operation.
- Accurate Load Measurement: Designed to measure compressive load according to the machine’s specified accuracy.
- Hydraulic Loading System: Applies compressive force to test specimens through a hydraulic mechanism.
- Laboratory Applications: Suitable for civil engineering laboratories, construction companies, and quality control facilities.
- Quality Control Support: Helps evaluate concrete strength for construction material testing.
- Easy Maintenance Access: Industrial cabinet design provides access to internal components for servicing by qualified technicians.
- Versatile Testing Applications: Supports compatible specimen types and test procedures according to the machine configuration.
- Professional Laboratory Equipment: Suitable for universities, research institutions, and material testing laboratories.
Related Civil Engineering Equipment
Explore more civil engineering laboratory equipment and concrete testing machines from SRM Trading Corporation in Bangladesh.
civil engineering laboratory equipment
Applications of Compression Test Machine in Bangladesh
A Compression Test Machine is an essential piece of laboratory equipment for evaluating the compressive strength of concrete specimens. It is widely used in civil engineering laboratories, construction material testing facilities, and quality control departments.
Concrete Compression Testing

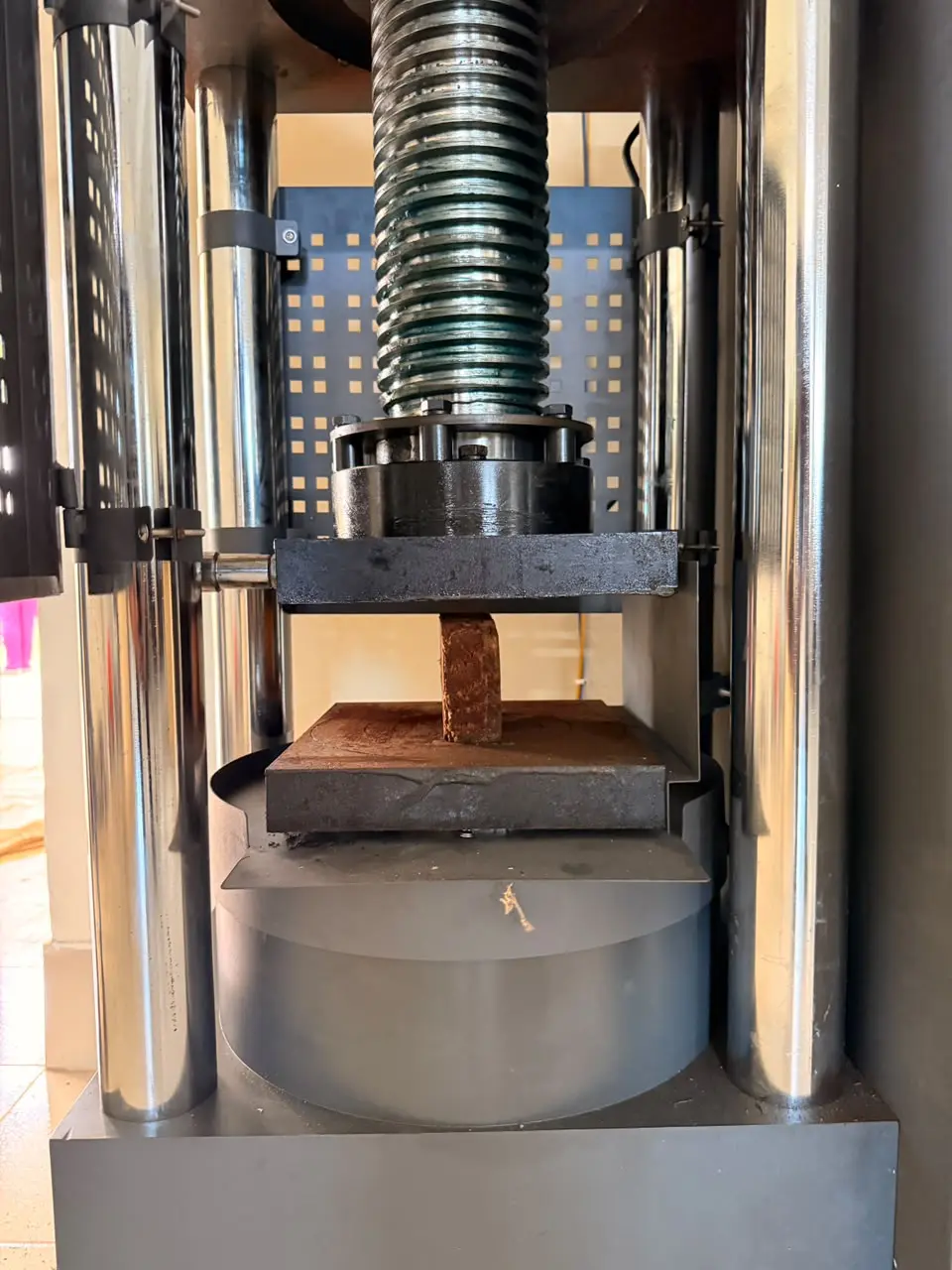

The machine applies a controlled compressive load to suitable concrete cube or cylinder specimens until failure. The measured maximum load is used to calculate the compressive strength of the tested material.
Importance in Construction Quality Control
Compression testing helps engineers assess concrete strength and evaluate whether tested samples meet specified project requirements. Reliable testing procedures support material quality assessment in construction projects.
Laboratory Testing Applications
Digital compression testing machines are used in universities, engineering laboratories, research institutions, and construction testing facilities. Proper specimen preparation, machine calibration, and applicable testing standards are important for obtaining reliable results.
Compression Test Machine Supplier in Bangladesh
How to Choose a Compression Test Machine
When selecting a Compression Test Machine in Bangladesh, consider the required load capacity, specimen dimensions, testing accuracy, and digital measurement features. Choose equipment that supports your laboratory’s testing requirements and applicable standards. Regular calibration, proper installation, and trained operation are important for reliable concrete strength testing and long-term equipment performance.
