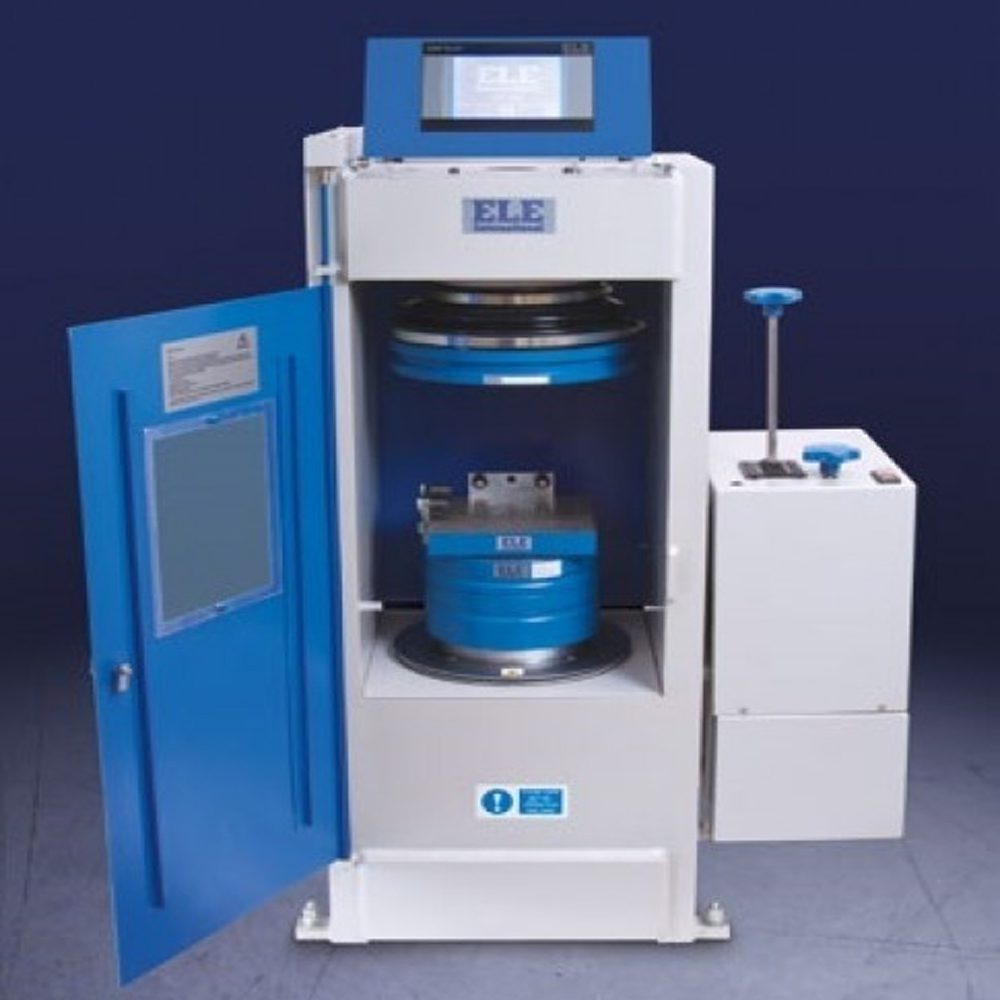

ELE USA Brand 2000kN CTM Machine

Original price was: 1,800,000.00৳ .Current price is: 1,750,000.00৳ .

ELE USA Brand 2000kN CTM Machine

  • Brand: ELE
  • Country of origin: USA
  • Manufacturing Country: USA
  • RTC is Importer & Dealer in Bangladesh
Category:

Description

ELE USA Brand 2000kN CTM Machine best price in Bangladesh. More details in below:  ELE USA Brand 2000kN CTM Machine

EN 12350-6 Yes
Voltage Supply 220-240 V 50/60 Hz
Force Capacity, kN 2000
Maximum Ram Travel mm 50 mm
NF P18-411 Yes

Specification

Testing Standards BS EN 12390-4, BS EN 12390-3, BS EN 12390-4, BS EN 12390-5, EN 12504-1, EN 1354, EN 1521, EN 3161, EN 1338, EN 772-6, EN 13286-41, BS 3892-3, BS 187, BS 6717, BS EN ISO 7500-1, ASTM E4
Capacity 2000 kN
Cubes (Concrete) Up to 200 mm
Cylinders (Concrete) Up to 160 x 320 mm
Blocks Via optional Platen Handling System
Flexural Testing Via Flexural Frame
TFV and ACV Yes
Voltage Supply 220-240V 50/60 Hz 1Ph.
Frame Class (Stability) Tested
Frame Type Welded
Max vert. Clearance 340 mm
Max hor. Clearance 355 mm
Platen Sizes Lower 220mm sq,
Upper 300mm dia
Max Ram Travel 50 mm
